1 Ton 3PH 460/230v Hoist

1 Ton 3PH 460/230v Hoist

Starting at
Regular price $3,200.00

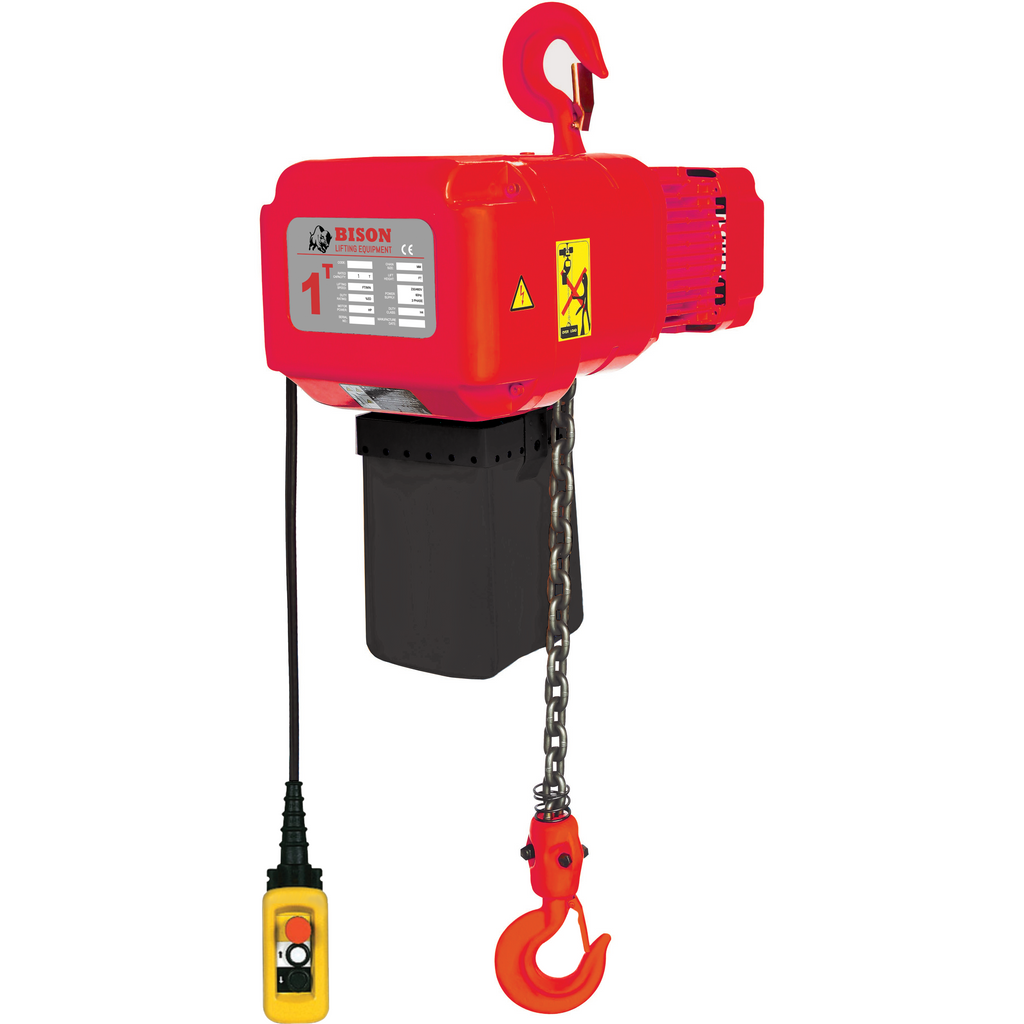

Bison's dual-speed electric chain hoists are great for lifting applications where low speeds are required for greater precision and control with the benefit of a high speed for productivity. They include a lightweight aluminum body with a fan-cooled motor, standard thermal motor protection, friction-clutch, limit switches and a safety brake. Bison hoists feature Schneider Electric™ contactors.

Specifications
Code Size Standard Lift Height Push Button Cord Head Room Lifting Speed Motor Output Load Chain Size Chain Fall Lines Hoist Weight Shipping Weight
HHBD01SK-01D 1 Ton 20 Ft 17 Ft 19.69 inches 24/8 ft/min 2 Hp 8mm 1 148 lbs 162 lbs

- Complies with ASME B30.16
H4 rated motor
- Dual Voltage 460v/230v (comes prewired for 460v)
- Control Voltage: 48v
IP65 Ergonomic pendant controller
- Easy maintenance control panel
- Chain Bag included on all standard models.

 CONTACT US  FOR A QUOTE ON CUSTOM LENGTHS
