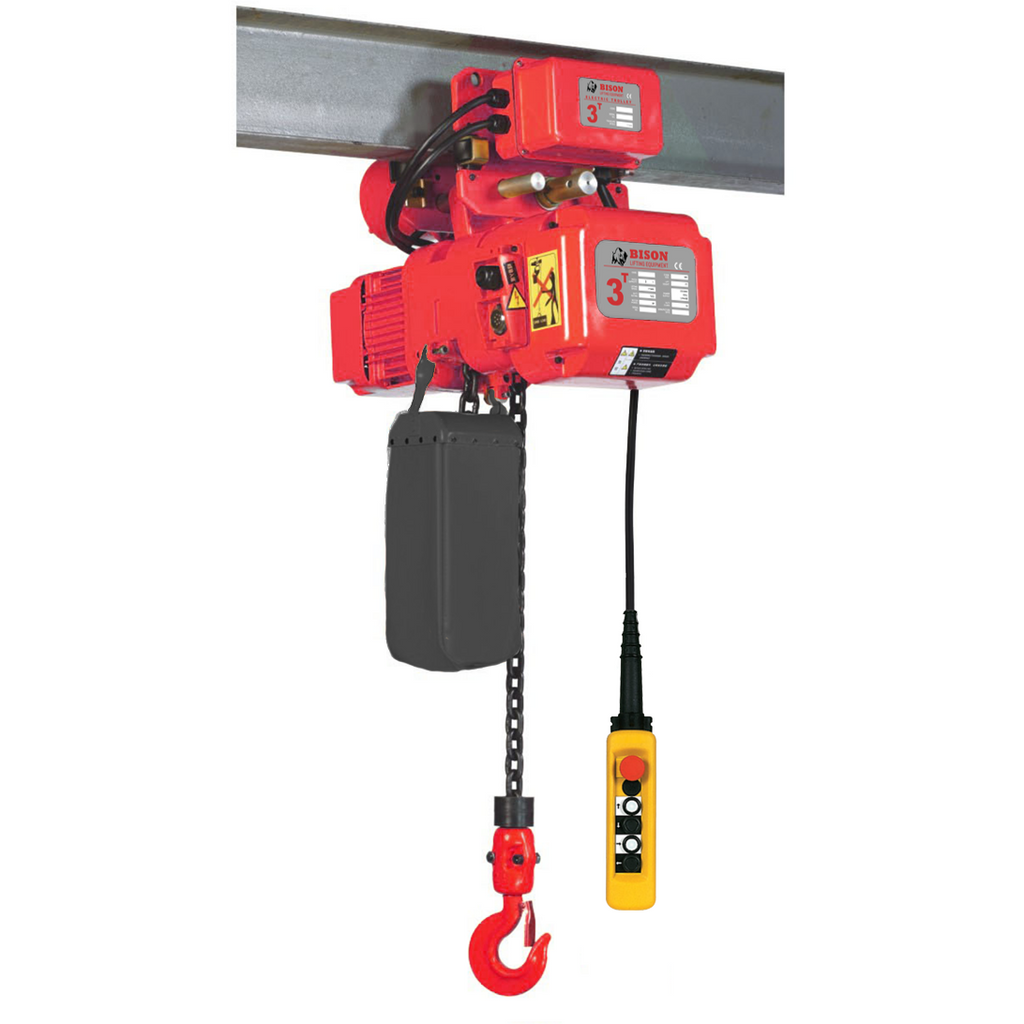

3 Ton 3PH 460/230v Hoist + Trolley
Bison's 3 Phase Hoists are equipped with the latest technology. They include a lightweight aluminum body with a fan-cooled motor, standard thermal motor protection, friction-clutch, limit switches and a safety brake. Bison hoists feature Schneider Electric™ contactors.
|Code||Size||Standard Lift Height||Push Button Cord||Head Room||Lifting Speed||Motor Output||Trolley Speed||Trolley Output||Load Chain Size||Chain Fall Lines||Hoist + Trolley Weight||Shipping Weight|
|HHBD03SK-01 + WPC03||3 Ton||20 Ft||18 Ft||27.95 inches||17.72 ft/min||4 Hp||32.8 ft/min||0.5 Hp||11.2 mm||1||435 lbs||479 lbs|
- Complies with ASME B30.16
- H4 rated motor
- Dual Voltage 460v/230v (comes prewired for 460v)
- Control Voltage: 48v
- IP65 Ergonomic pendant controller
- Easy maintenance control panel
- Chain Bag included on all standard models.
CONTACT US FOR A QUOTE ON CUSTOM LENGTHS
