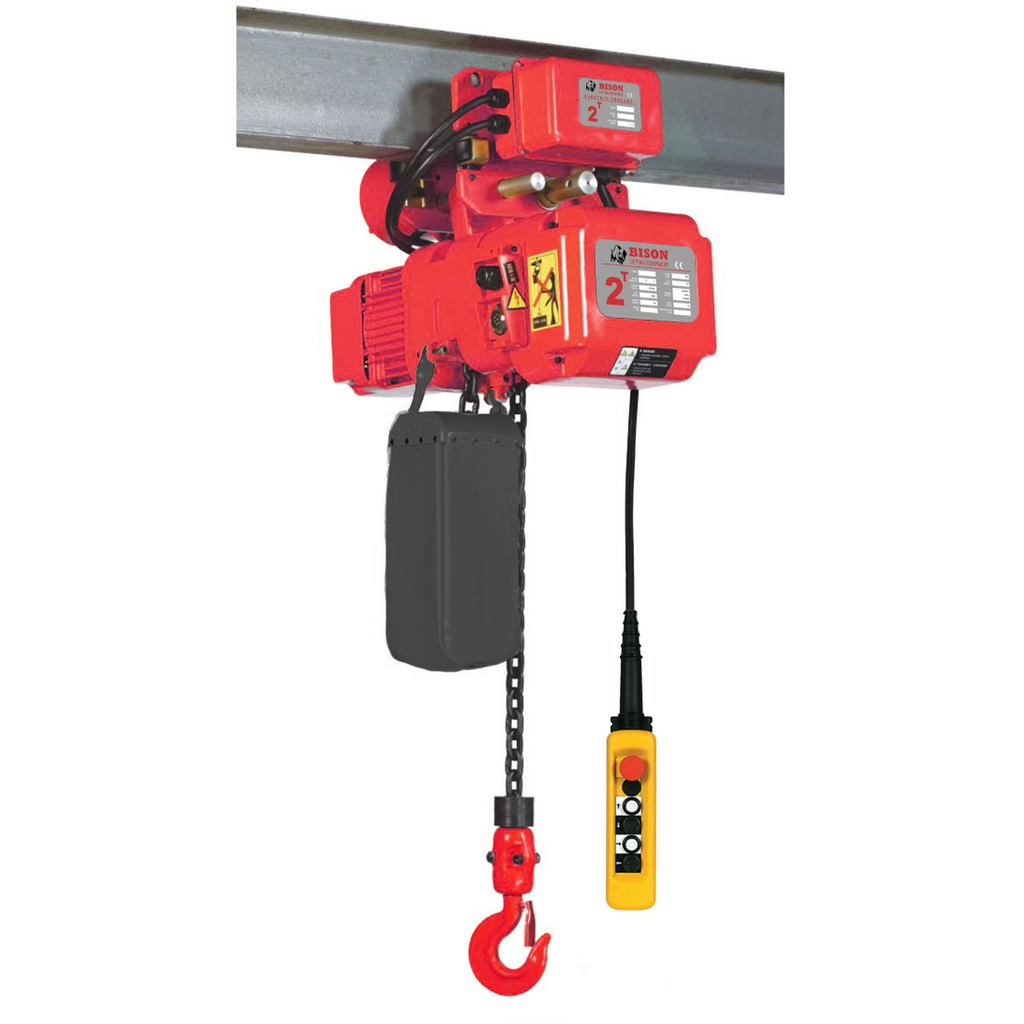

2 Ton 3PH 460/230v Hoist + Trolley

2 Ton 3PH 460/230v Hoist + Trolley

Starting at
Regular price $4,600.00

Bison's 3 Phase Hoists are equipped with the latest technology. They include a lightweight aluminum body with a fan-cooled motor, standard thermal motor protection, friction-clutch, limit switches and a safety brake. Bison hoists feature Schneider Electric™ contactors.

Specifications
Code Size Standard Lift Height Push Button Cord Head Room Lifting Speed Motor Output Trolley Speed Trolley Output  Load Chain Size Chain Fall Lines Hoist + Trolley Weight Shipping Weight
HHBD02SK-01 + WPC02 2 Ton 20 Ft 18 Ft 22 inches 14.4 ft/min 2 Hp 32.81 ft/min 0.54 Hp 10mm 1 278 lbs 311 lbs

- Complies with ASME B30.16
H4 rated motor
- Dual Voltage 460v/230v (comes prewired for 460v)
- Control Voltage: 48v
IP65 Ergonomic pendant controller
- Easy maintenance control panel
- Chain Bag included on all standard models.

CONTACT US  FOR A QUOTE ON CUSTOM LENGTHS

 Technical Specifications


Select the quantities in the table and then click "Add to Cart" at the bottom of the table:
Product Code
Capacity
Length
Shipping Weight
Price
Order Quantity
HHBD02SK-01 + WPC02
2 T
20'
311.0 lb
$4,600.00
Quantity:

Select the desired quantities of the various 2 Ton 3PH 460/230v Hoist + Trolley that you need and then click the "Add to cart" button
