1/2 Ton 1PH 230/115v Hoist

1/2 Ton 1PH 230/115v Hoist

Starting at
Regular price $2,050.00

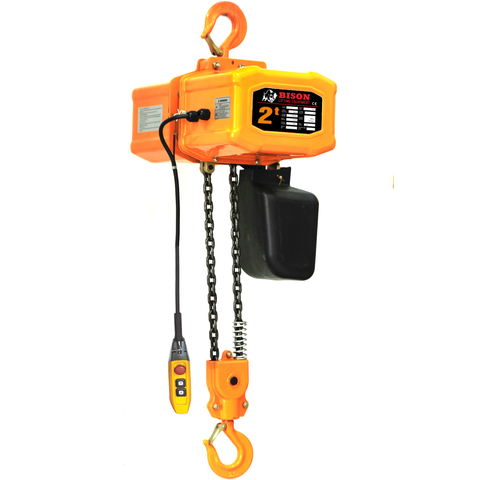

Bison's Single Phase Electric Chain Hoists are built for heavy-duty lifting applications that require single phase power. The durable lightweight unit includes limit switches and a safety brake.

Specifications
Code Size Standard Lift Height Push Button Cord Head Room Lifting Speed Motor Output Load Chain Size Chain Fall Lines Hoist Weight Shipping Weight
HH-B05 1/2 Ton 20 Ft 18 Ft 21.5 inches 21 ft/min 1 Hp 7.1 mm 1 148 lbs 190.5 lbs

- Complies with ASME B30.16
H4 rated motor
- Dual Voltage 115v or 230v
- Control Voltage: 24v
IP65 Ergonomic pendant controller
- Chain Container included on all standard models.

 Technical Specifications



CONTACT US  FOR A QUOTE ON CUSTOM LENGTHS


Select the quantities in the table and then click "Add to Cart" at the bottom of the table:
Product Code
Capacity
Length
Shipping Weight
Price
Order Quantity
HH-B05
1/2 T
20'
150.0 lb
$2,050.00
Quantity:

Select the desired quantities of the various 1/2 Ton 1PH 230/115v Hoist that you need and then click the "Add to cart" button
